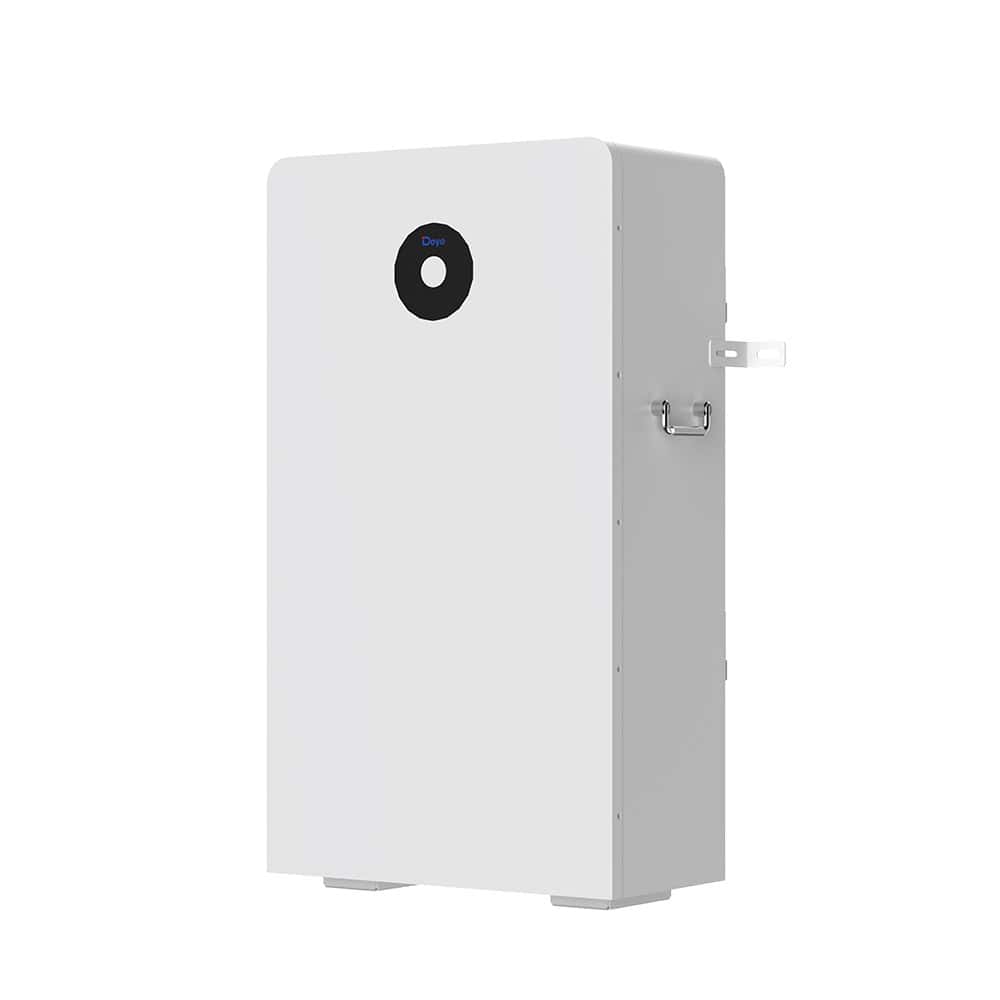

Deye LV 16kWh RW-F16 LiFePO₄ Battery

Add to wishlist
Add to compare
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Description

RW-F16: Advanced Residential Energy Storage Battery

The RW-F16 is a cutting-edge battery for residential energy storage, designed to deliver reliable and efficient power management for homes.

Specification Detail
Model RW – F16
Battery Chemistry LiFePO₄
Capacity 314 Ah
Nominal Voltage 51.2 V
Usable Energy 14.4 kWh (90% Depth of Discharge)
Charge/Discharge Current – Maximum Continuous 160 A
Charge/Discharge Current – Peak 300 A (10 seconds)
Dimensions 480 x 830 x 235 mm
Weight Approximately 122 kg
IP Rating IP20 (suitable for indoor use)
Operating Temperature Range – Charge 0°C to 55°C
Operating Temperature Range – Discharge -20°C to 55°C
Relative Humidity 95% (maximum)
Installation Wall – mounted or floor – mounted
Warranty Period 5 – year warranty (10 years extendable)
Certification UN38.3, MSDS

Key Features:

  • Uncompromised Safety: Utilizes the safest LiFePO₄ battery chemistry and features an Intelligent BMS, ensuring safe and stable operation.
  • Powerful Output & Ample Energy: Offers a maximum 8kW output power and 14.4kWh usable energy (with 90% depth of discharge), meeting diverse home energy demands.
  • External Power Backup: Enables external power activation to prevent battery suspension, guaranteeing continuous energy supply.
  • Flexible Use & Scalability: Comes with built-in 10A constant current limited charging, compatible with numerous inverter brands. Allows up to 32 units in parallel for easy expansion.
  • Hassle-free Maintenance: Supports over-discharge direct recharge, making upkeep simple.
With dimensions of 480 x 830 x 235 mm, weighing around 122 kg, and an IP20 rating for indoor use, the RW-F16 also comes with a 5-year warranty (extendable to 10 years) and holds certifications like UN38.3 and MSDS, making it a dependable choice for home energy storage.
