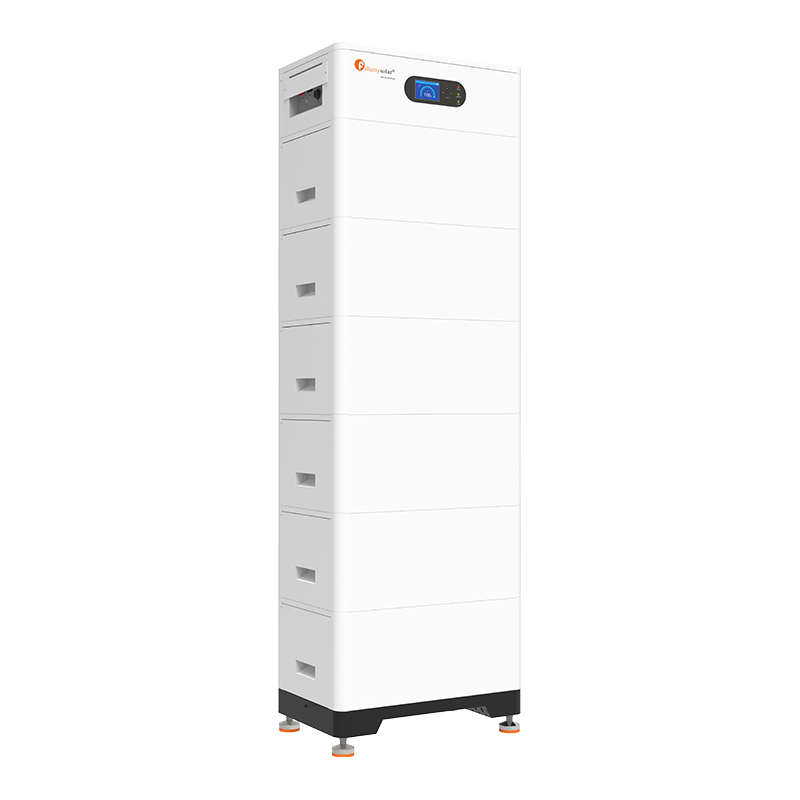

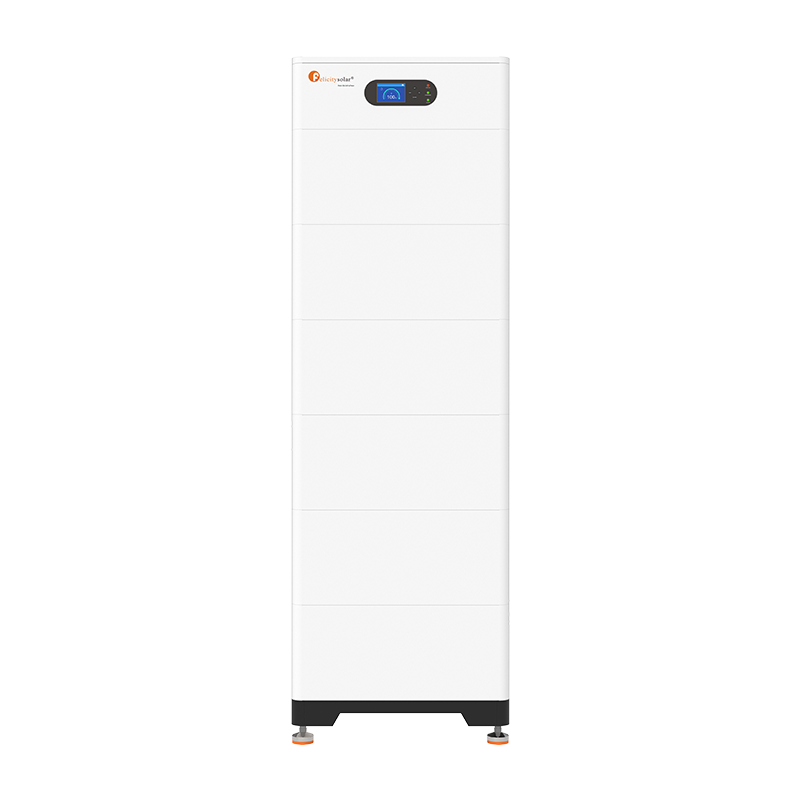

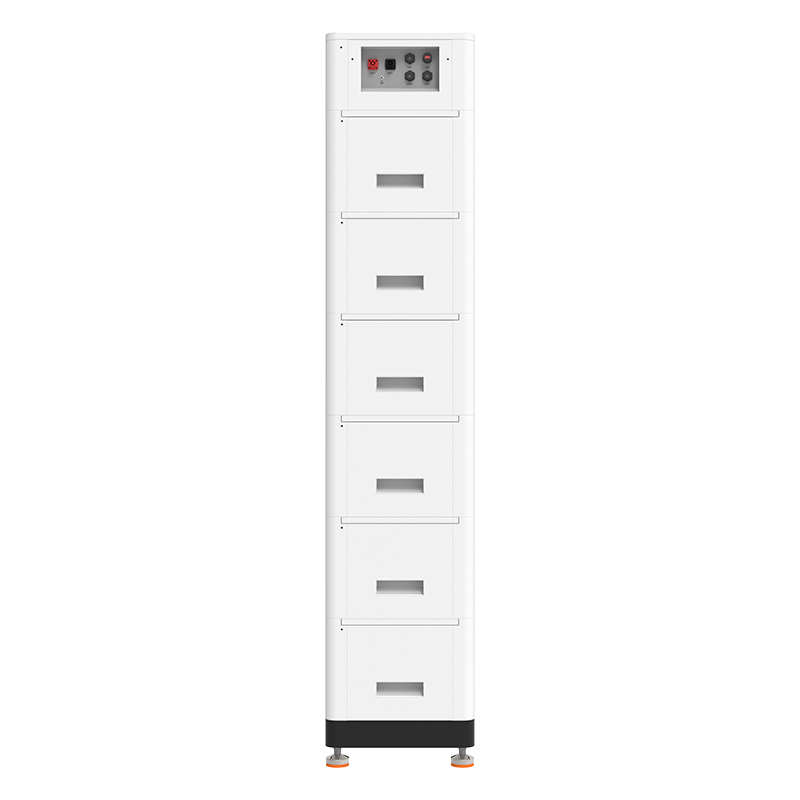

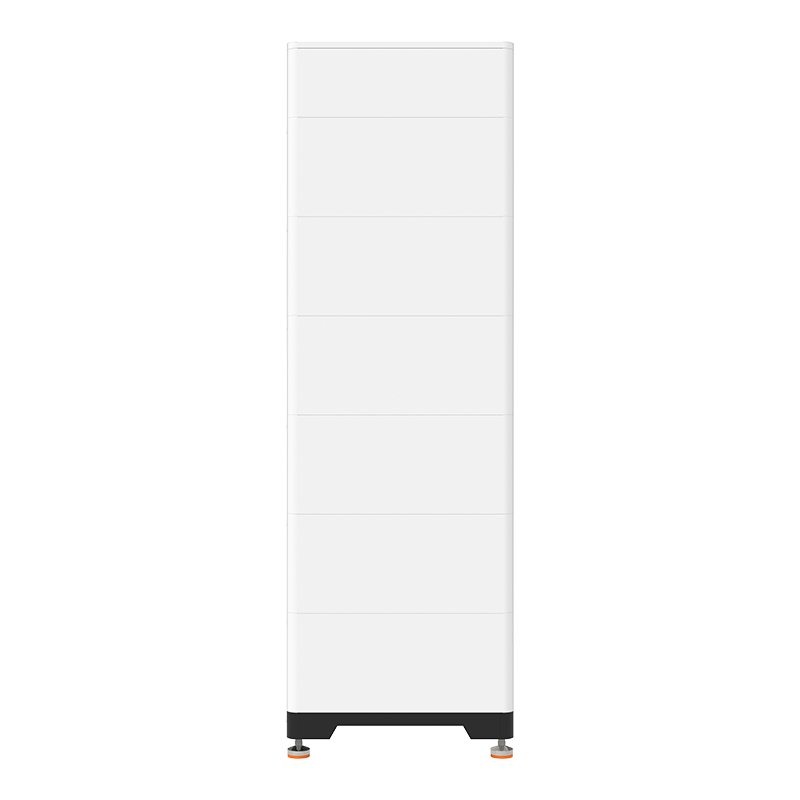

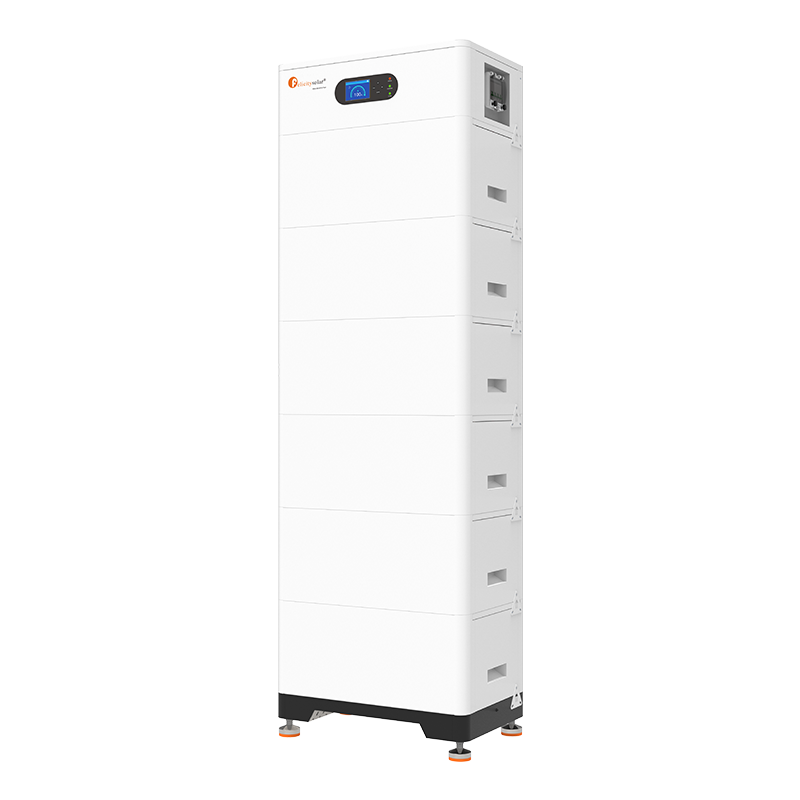

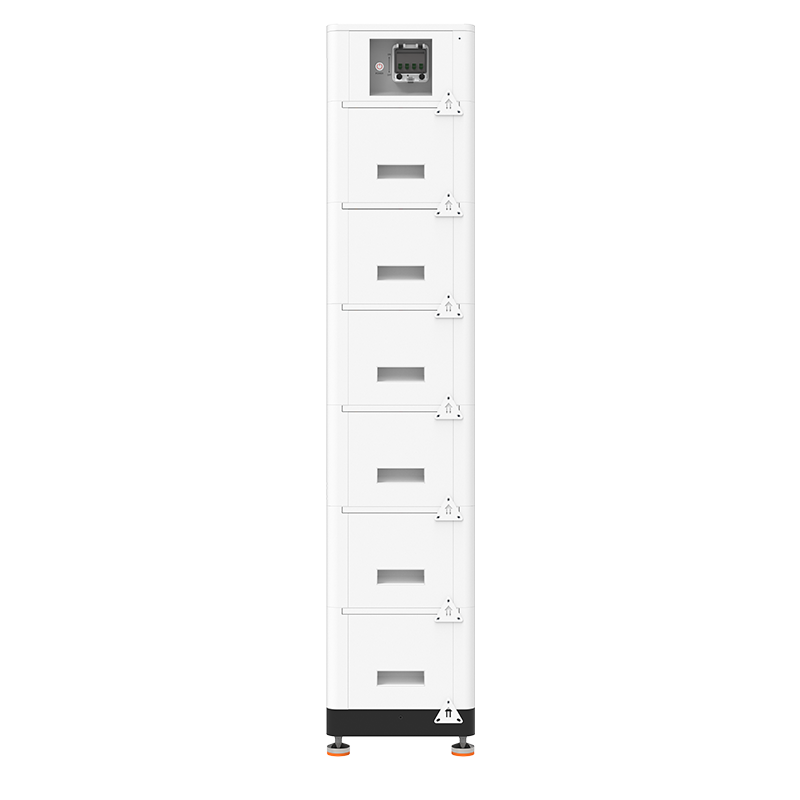

Felicity FLH 96050SG1 – Technical Specifications

🔋 Battery Overview

• Model: FLH 96050SG1

• Battery Type / Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Nominal System Energy: 30.72 kWh (6-module stack)

• Nominal Voltage: 614.4 V (6-module stack)

• Depth of Discharge (DoD): ≥ 95%

• Cycle Life: ≥ 6,000 cycles

• Warranty: 10 years

🔌 Electrical Specifications

• Operating Voltage Range: 576 – 691.2 V (for 6 modules)

• Recommended Charge / Discharge Current (per module): 25 A

• Max Continuous Charge / Discharge Current (per module): 50 A

• Peak Current (15 s, per module): 60 A

• Round-Trip Efficiency: ~95%

• Scalability / Stacking: Stackable for multi-module systems

📡 Communication & Control

• Communication Ports: RS‑485, CAN

• BMS Features:

  • Over-charge protection

  • Over-discharge protection

  • Over-current protection

  • Short-circuit protection

  • Cell balancing

  • Temperature protection

🌡️ Operating Environment

• Charge Temperature: 0°C to 55°C

• Discharge Temperature: –20°C to 55°C

• Storage Temperature: –20°C to 45°C

• Ingress / Protection Rating: IP65 (suitable for indoor/outdoor use)

📏 Physical Specifications

• Mounting: Stack-mount or floor-mount

• Module Dimensions (L × W × H): Varies by module (~exact module size not specified)

• Weight: Varies by module (~exact weight not specified)

📄 Certifications

• UN38.3

• CB, CE-EMC

• IEC 62619
