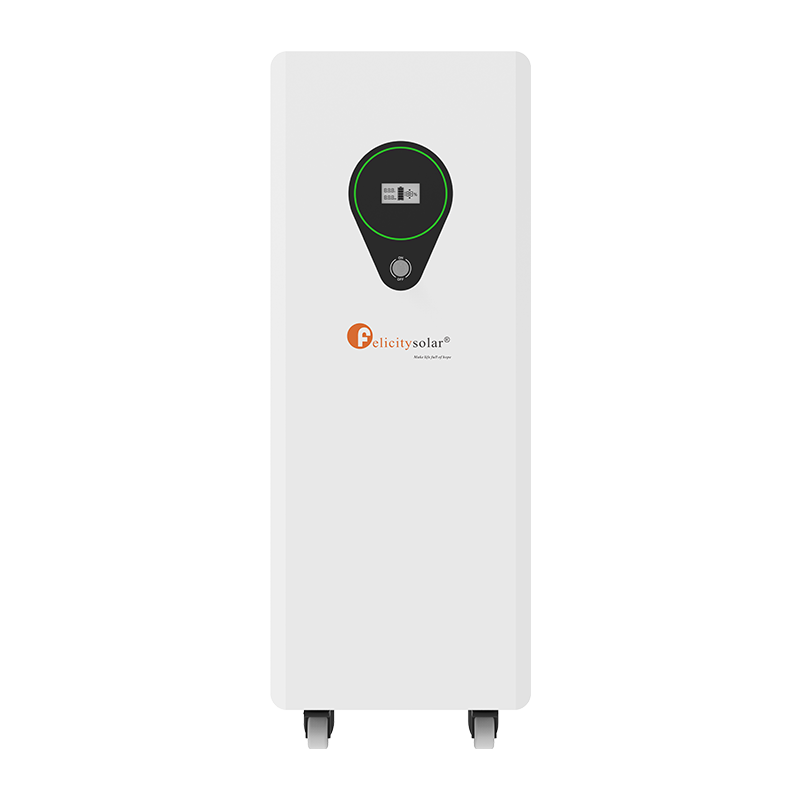

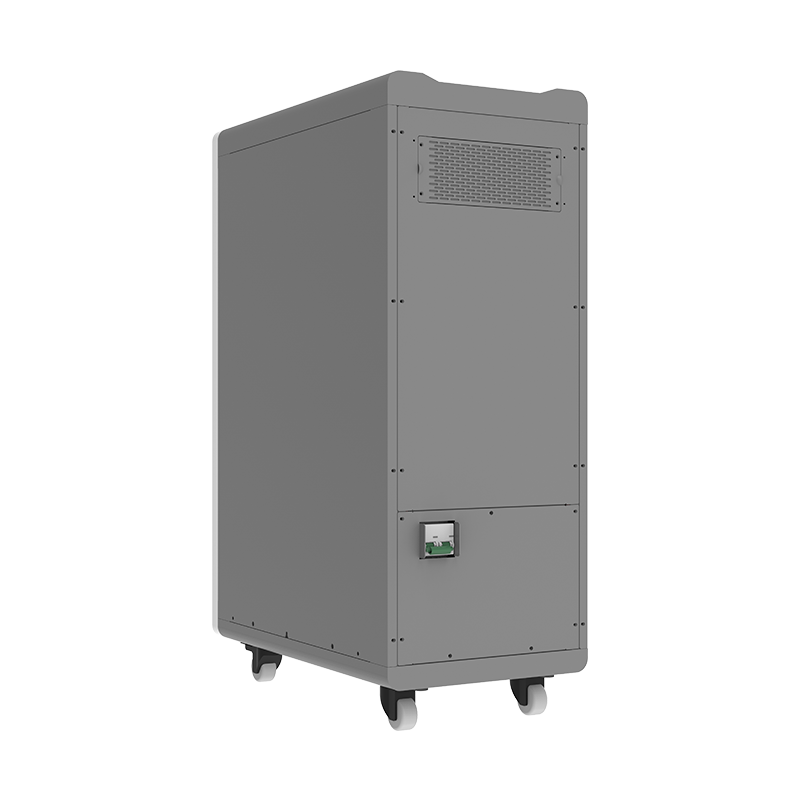

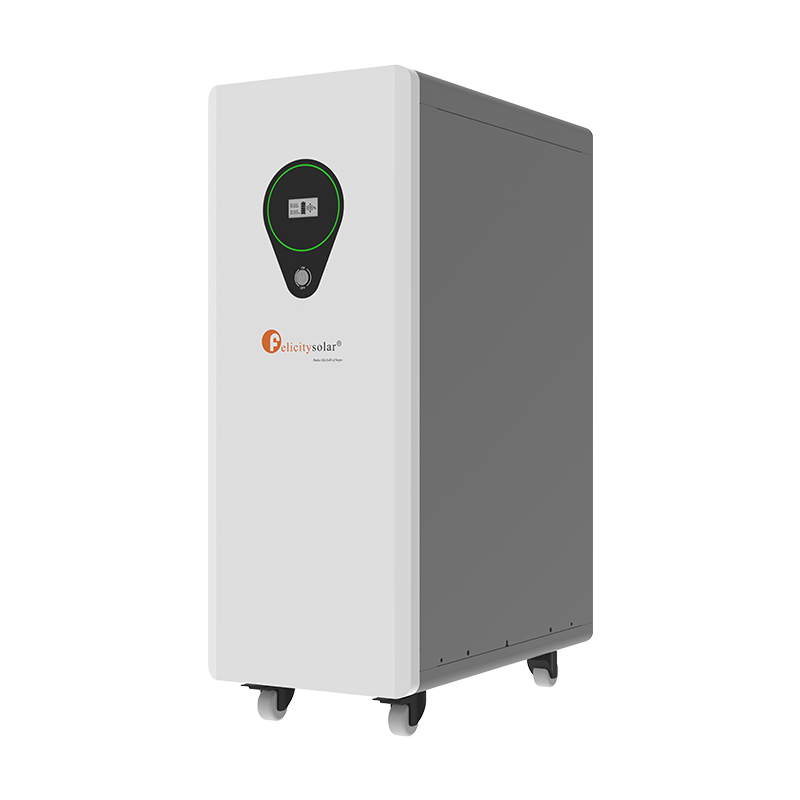

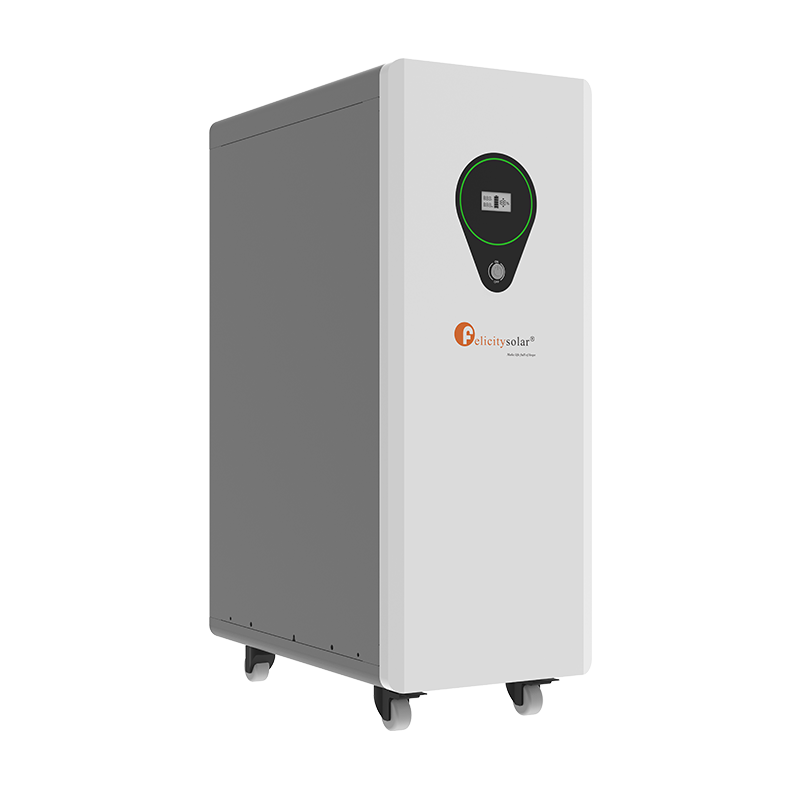

Felicity LPBF 48350 – Technical Specifications

🔋 Battery Overview

• Model: LPBF 48350

• Battery Type / Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Nominal Energy Capacity: 17.5 kWh

• Nominal Voltage: 51.2 V

• Depth of Discharge (DoD): ≥ 95%

• Cycle Life: ≥ 6,000 cycles @ 25°C, 80% DoD

• Warranty: 5 years

🔌 Electrical Specifications

• Voltage Range: 48 – 57.6 V

• Recommended Charge / Discharge Current: ≤ 200 A

• Maximum Charge / Discharge Current: 250 A @ 120 s

• Recommended Output Power: ≤ 10,000 W

• Maximum Output Power: 12,500 W @ 120 s

• Parallel Modules Support: 1 to 6 units (~105 kWh system)

• Communication Ports: CAN & RS‑485

🌡️ Operating Environment

• Charge Temperature: 0 °C to 55 °C

• Discharge Temperature: –20 °C to 60 °C

• Ingress / Protection Rating: IP21

📏 Physical Specifications

• Dimensions (L × W × H): 622 × 350 × 955 mm

• Net Weight: ~154 kg

• Gross Weight: ~177 kg

📄 Certifications

• UN38.3

• CE‑EMC

• IEC 62619
